Features and Benefits
- Frequency range: 120MHz
- Supply voltage: 5.0V
- Steady current: 40mA Max
- Output waveform: Sinewave
- Frequency stability vs. operating temperature: ±0.28PPM
- Operating temperature: -40°C to +85°C

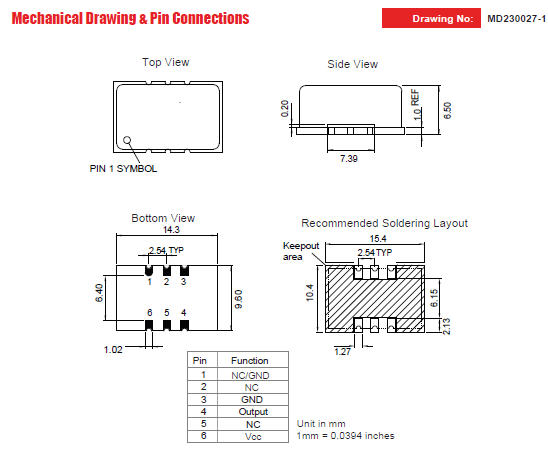

- Size: 14.3x9.6x6.5mm
Typical Applications
- SATCOM System
- Cellular Base Stations
- Radar Applications
